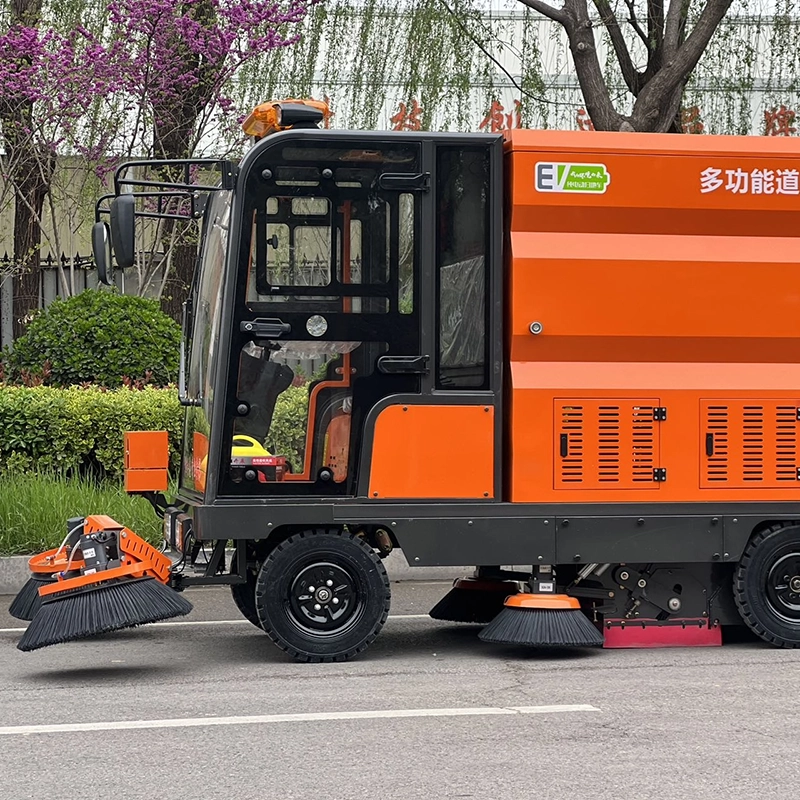

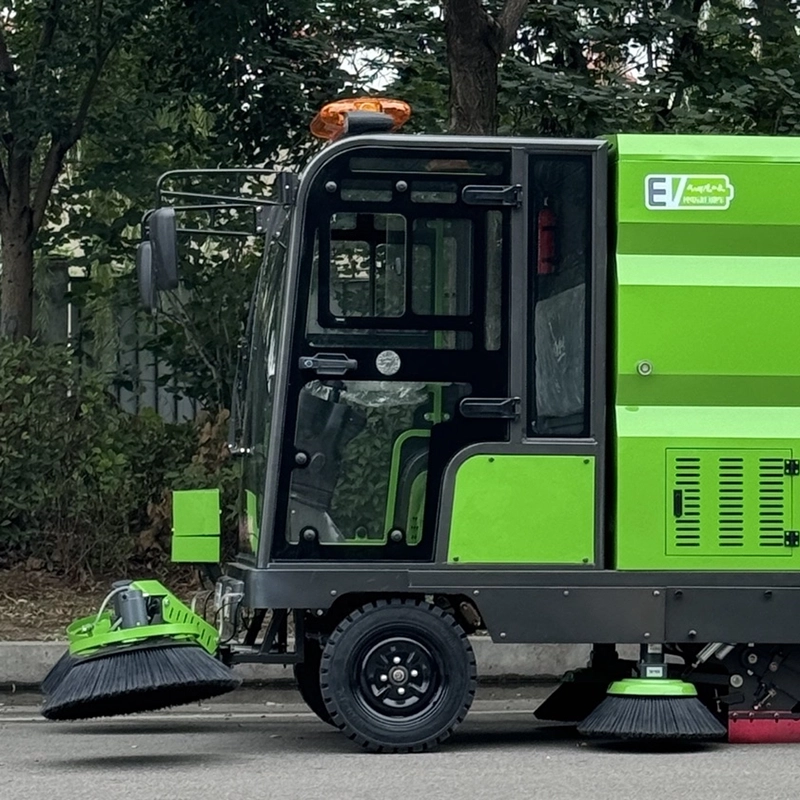

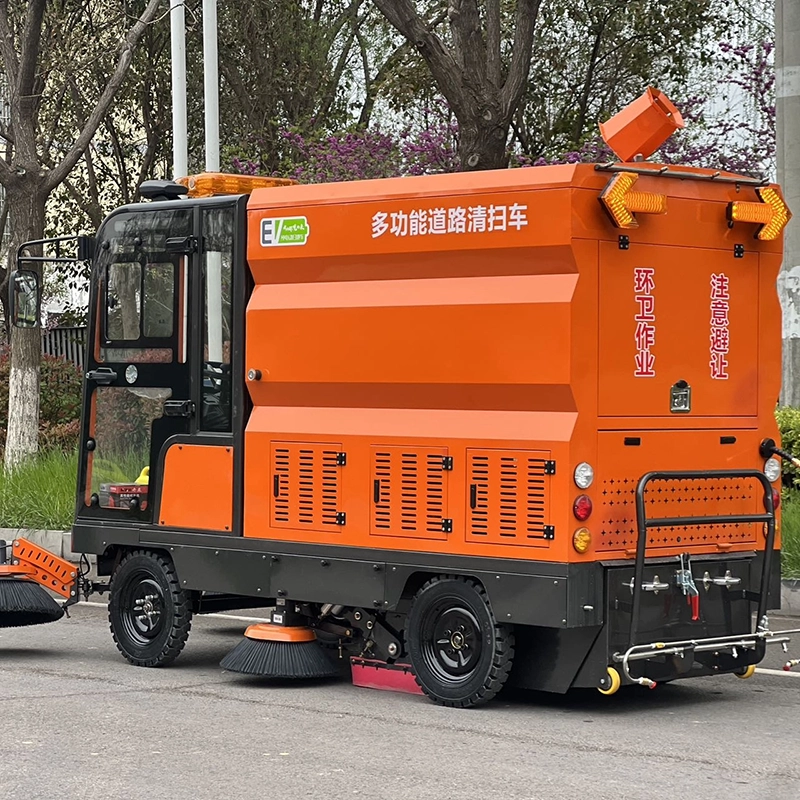

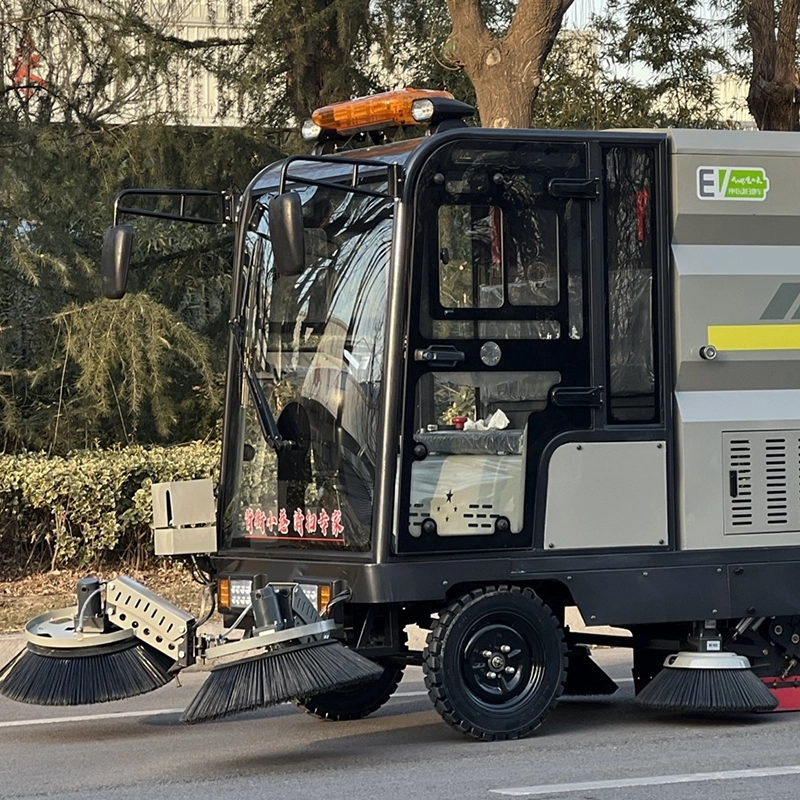

MS-2500J Four-wheel Five-brush Enclosed Dual-fan Sweeper
Product Category
Relative Products
MS-2500J Four-wheel Five-brush Enclosed Dual-fan Sweeper
Brands:
MINSEN
MS-2500J four-wheel five-brush fully enclosed sweeper with dual-fan system is equipped with a 2200W permanent magnet synchronous heavy track drive motor. It features an adjustable cleaning width of 1550–2500mm and a maximum cleaning efficiency of 22,500 square meters per hour. A four-fan multi-layer filtration dust suppression system is available as an upgrade option.
Equipped with a 260L waste bin and an 800L large-capacity water tank delivering long-distance high-pressure flushing, the machine supports 4–6 hours of continuous operation. Adopting a four-wheel heavy-duty body structure, it is perfectly suitable for long-duration, high-intensity cleaning tasks on municipal roads and large industrial parks.
| Parameter | Specification |
|---|---|
| Model | MS-2500J Four-wheel Five-brush Fully Enclosed Sweeper (Dual Fan) |
| Optional Upgrade Cost | 4 Fans, 4 Filter Elements, 4 Dust Shakers: +1500 RMB |
| Adjustable Cleaning Width | 1550-2500mm |
| Main Brush Length | 800mm |
| Side Brush Diameter | Front: 700mm × 2; Rear: 500mm × 2 |
| Working Efficiency | 15000-22500 ㎡/h |
| Dust Bin Capacity | 260L |
| Drive Motor | 2200W Permanent Magnet Synchronous Heavy Track Motor |
| Operating Power (Main Brush + 4 Side Brushes + Dual Fans + Dual Dust Shakers) | 1000W + 120W×4 + 350W×2 + 120W×2 |
| High-pressure Water Pump Power | 1100W |
| Water Tank Capacity | 800L |
| Power Supply | 48V 150Ah (6 Batteries) |
| Continuous Working Time | 4-6h |
| Travel Speed | 0-12km/h |
| Working Speed | 0-9km/h |
| Spraying Range of Front High-pressure Washing | 8-10m |
| Spraying Range of High-pressure Counter Flushing | 13-16m |
