MS-2300S Four-wheel Five-brush Enclosed Four-fan Sweeper
MS-2300S Four-wheel Five-brush Enclosed Four-fan Sweeper
Brands:
MINSEN

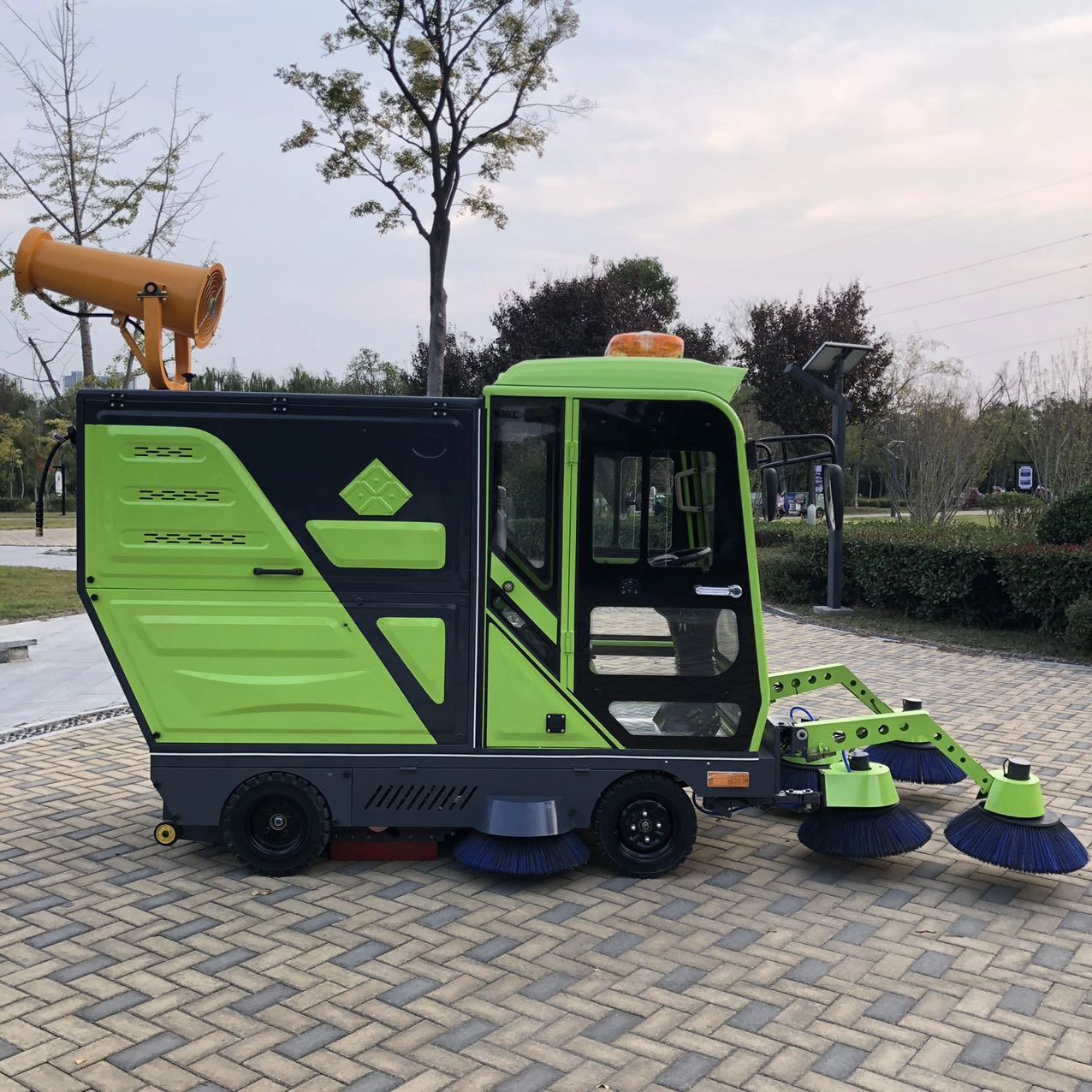

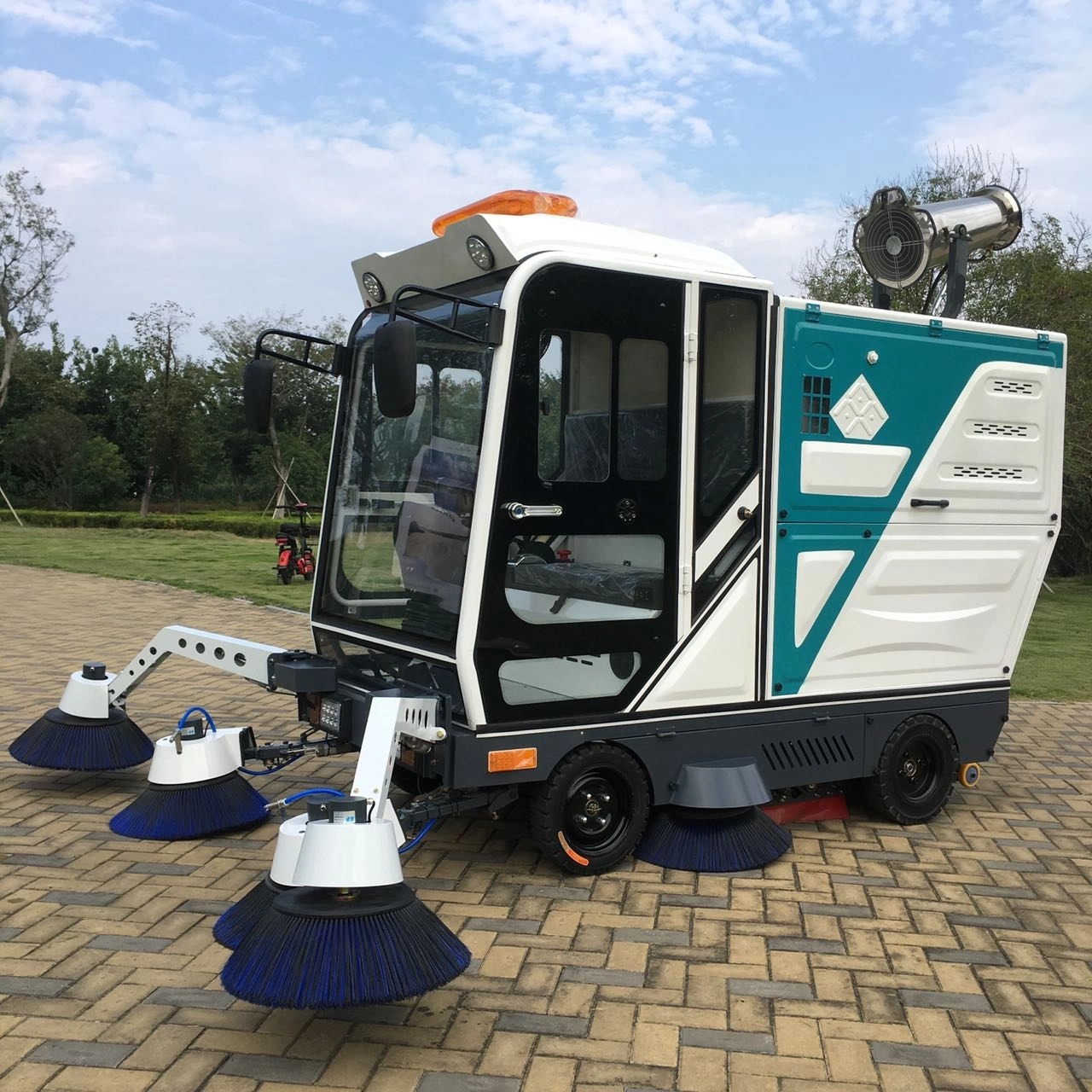

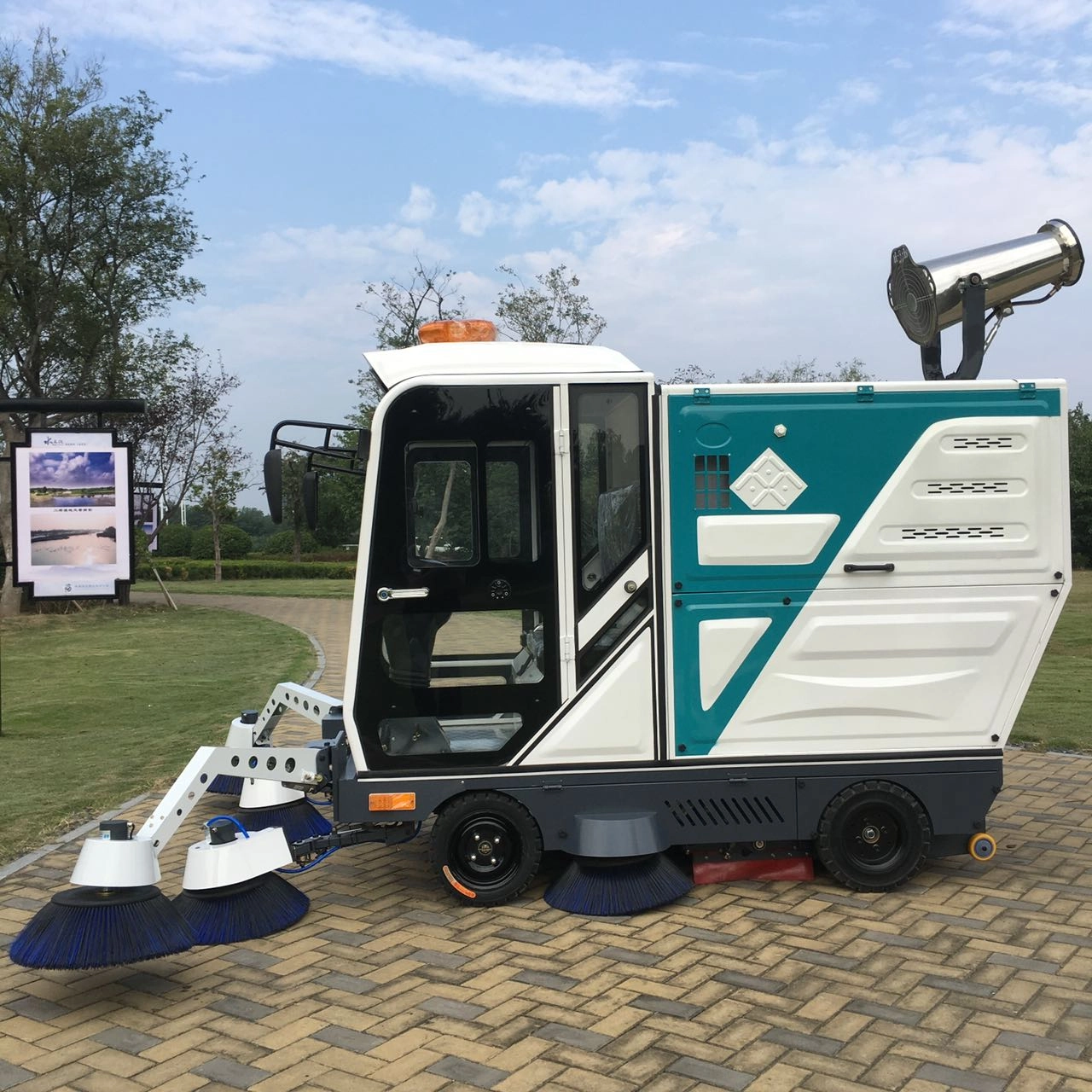

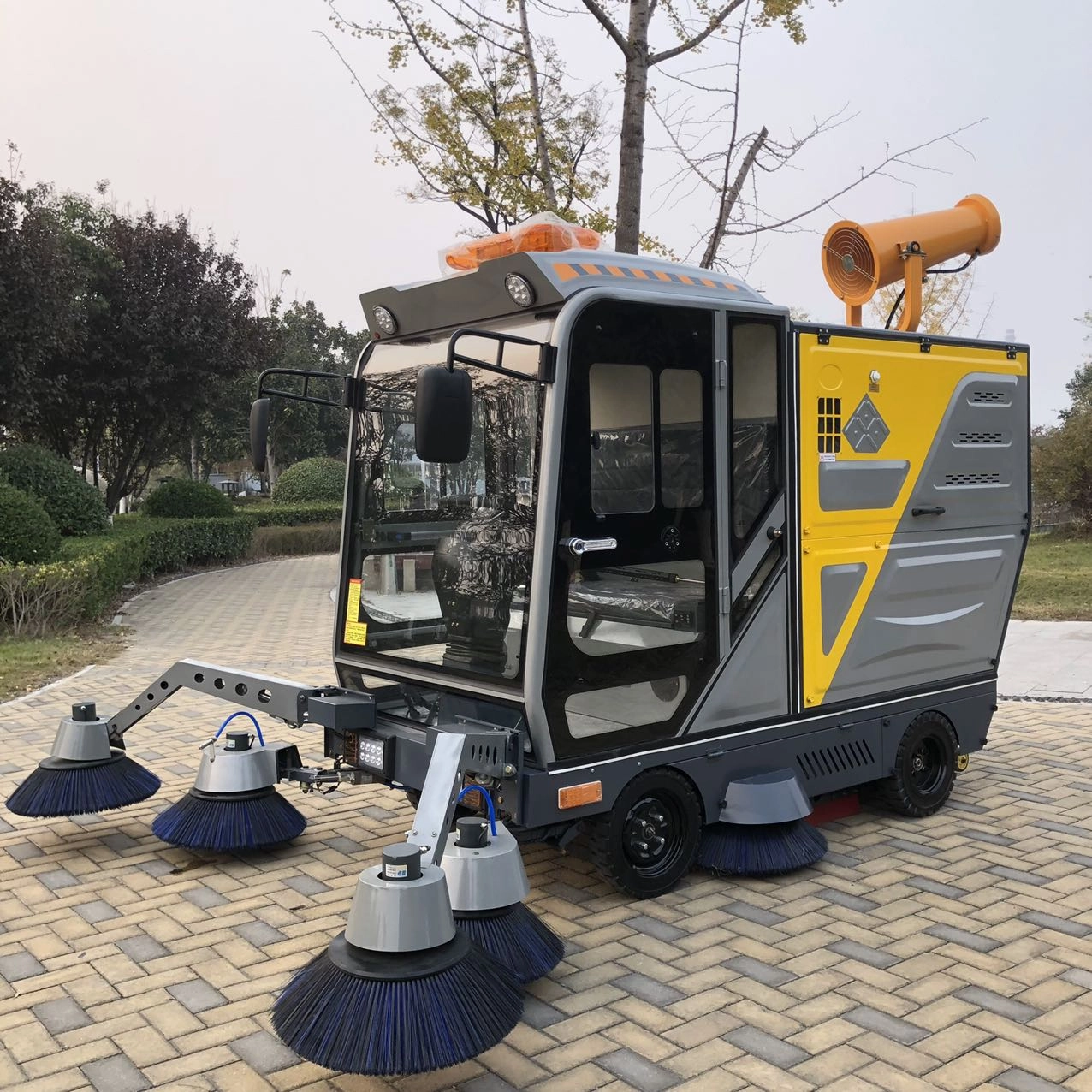

MS-2300S All-Rounder four-wheel five-brush fully enclosed sweeper features an extended seven-brush wide cleaning setup. Its adjustable cleaning width ranges from 1500mm to 3000mm, with a maximum cleaning efficiency of 20,000 square meters per hour. It is standard-equipped with dual fans and dual dust shakers, and can be upgraded to a four-fan multi-layer filtration dust suppression system.
Powered by a high-output 2200W drive motor, the complete machine weighs 1600KG. Optional configurations include an 800L large-capacity water tank and a 150KG high-pressure fog cannon, and lithium battery power supply is available as an alternative. Built on a four-wheel heavy-load chassis, it is ideal for heavy dust cleaning operations on municipal roadways and in large industrial campuses.
Category: Floor Sweeper Series

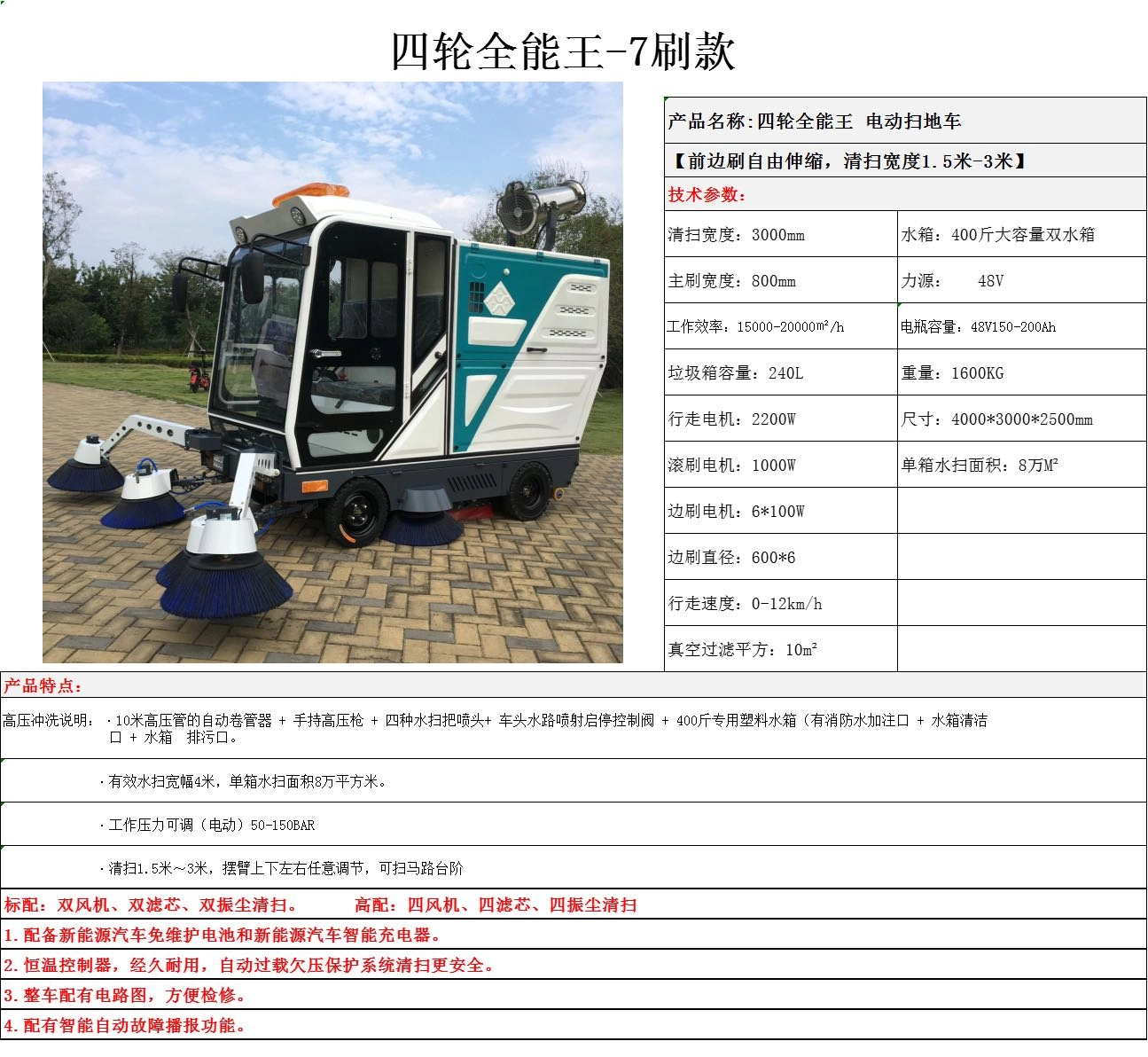

| Parameter | Specification |
|---|---|
| Model | MS-2300S All-Rounder Four-wheel Five-brush Fully Enclosed Sweeper, Dual Fan, 7 Extended Brushes |
| Standard Dust Removal Configuration | 2 fans, 2 filter elements, 2 dust shakers |
| Optional Upgrade Cost | 4 fans, 4 filter elements, 4 dust shakers: +1500 RMB; LED display screen: +500 RMB; Honda HR250kg gasoline pump: +3000 RMB |
| Optional Power Matching | 48V 153Ah Lithium Battery / 48V 203Ah Lithium Battery |
| Optional Attachment | Electric high-pressure cleaning & 150KG fog cannon |
| Adjustable Cleaning Width | 1500-3000mm |
| Main Brush Length | 800mm |
| Working Efficiency | 15000-20000 ㎡/h |
| Dust Bin Capacity | 240L |
| Drive Motor | 2200W |
| Roller Brush Motor | 1000W |
| Side Brush Motor | 6 × 100W |
| Side Brush Diameter | 600mm × 6 |
| Travel Speed | 0-12km/h |
| Vacuum Filter Area | 20 ㎡ |
| Water Tank Option | Optional 400kg Dual Large-capacity Water Tank |
| Power Supply | 48V |
| Optional Battery Capacity | 48V 153Ah – 203Ah |
| Total Machine Weight | 1600KG |
| Overall Dimensions (L×W×H) | 4000×3000×2600mm |
