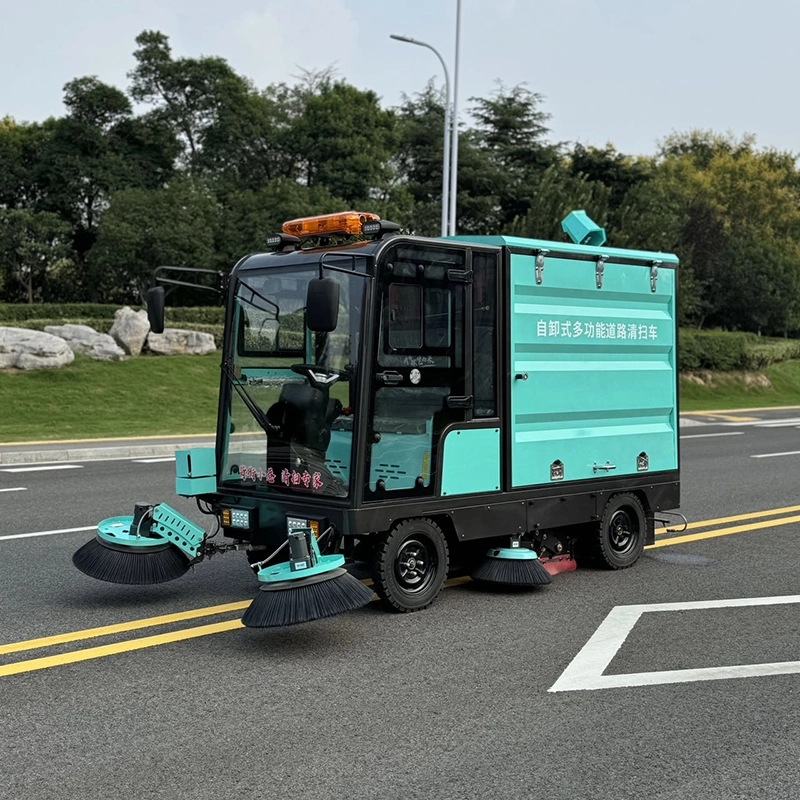

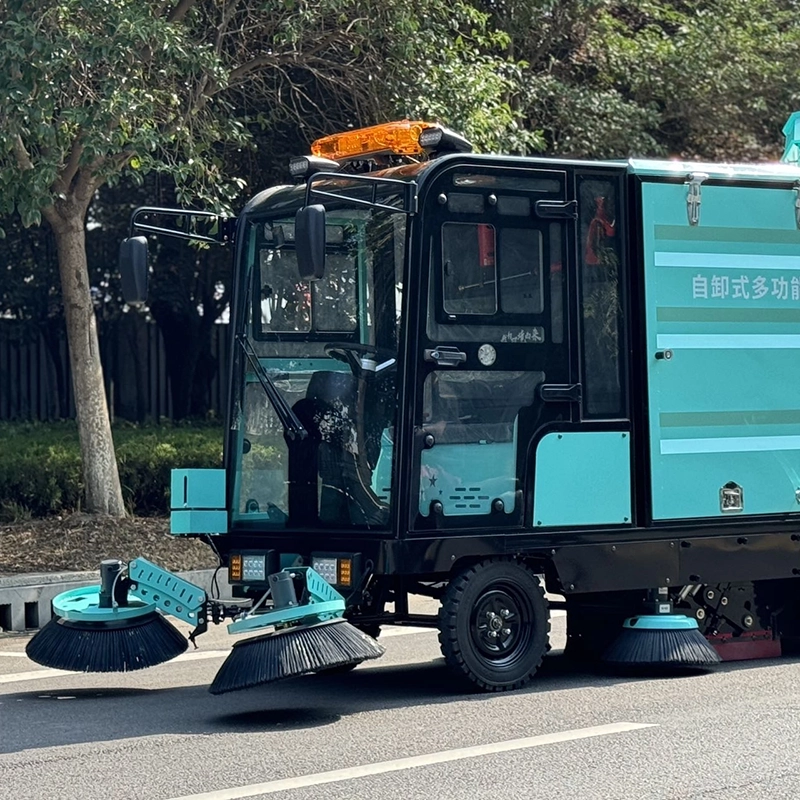

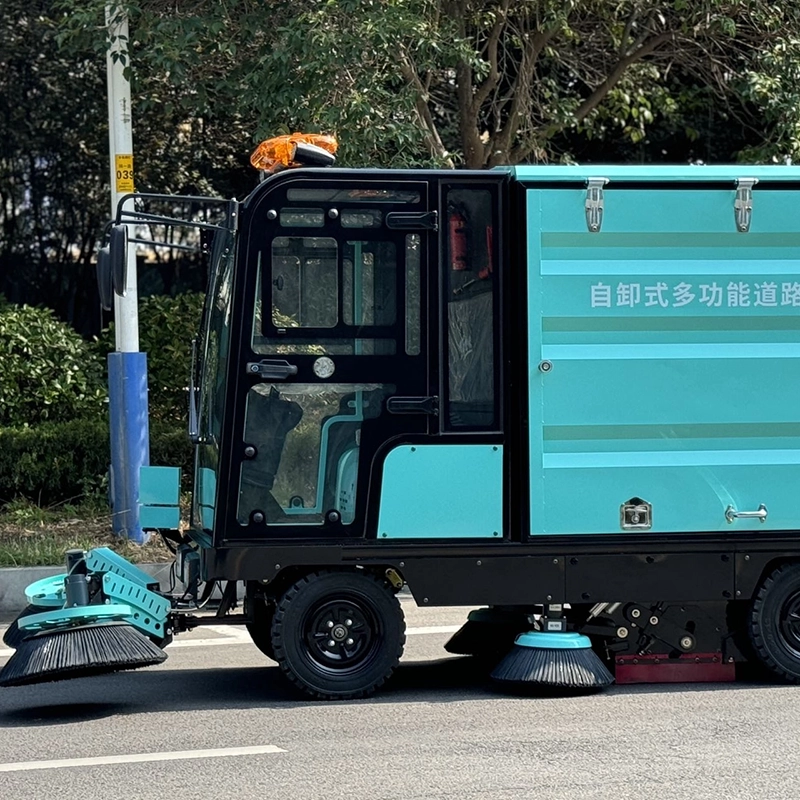

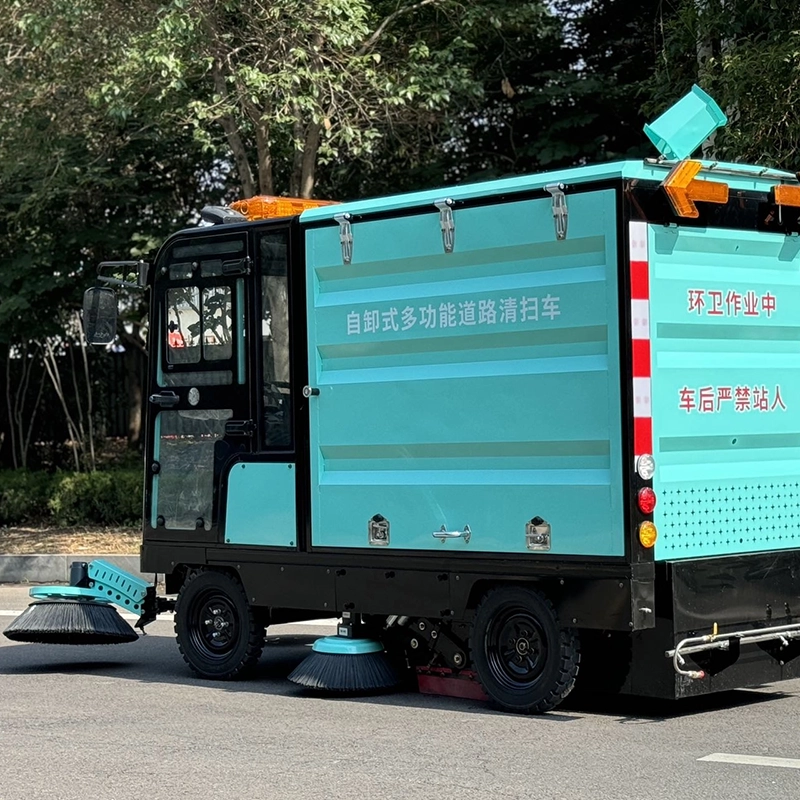

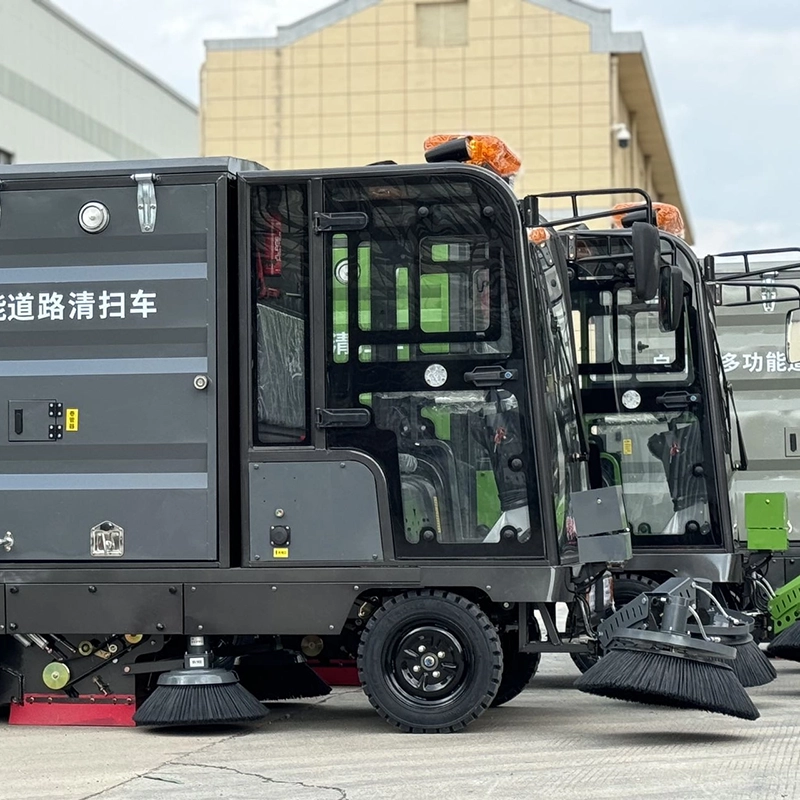

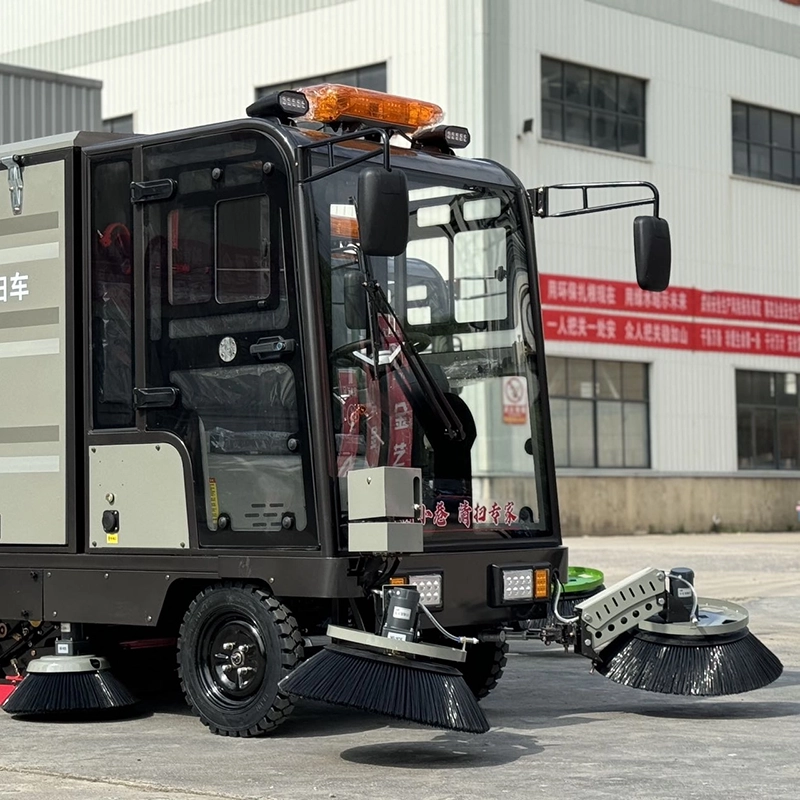

MS-2500ZX Four-wheel Five-brush Enclosed Four-fan Self-discharging Sweeper

MS-2500ZX Four-wheel Five-brush Enclosed Four-fan Self-discharging Sweeper

Brands: MINSEN

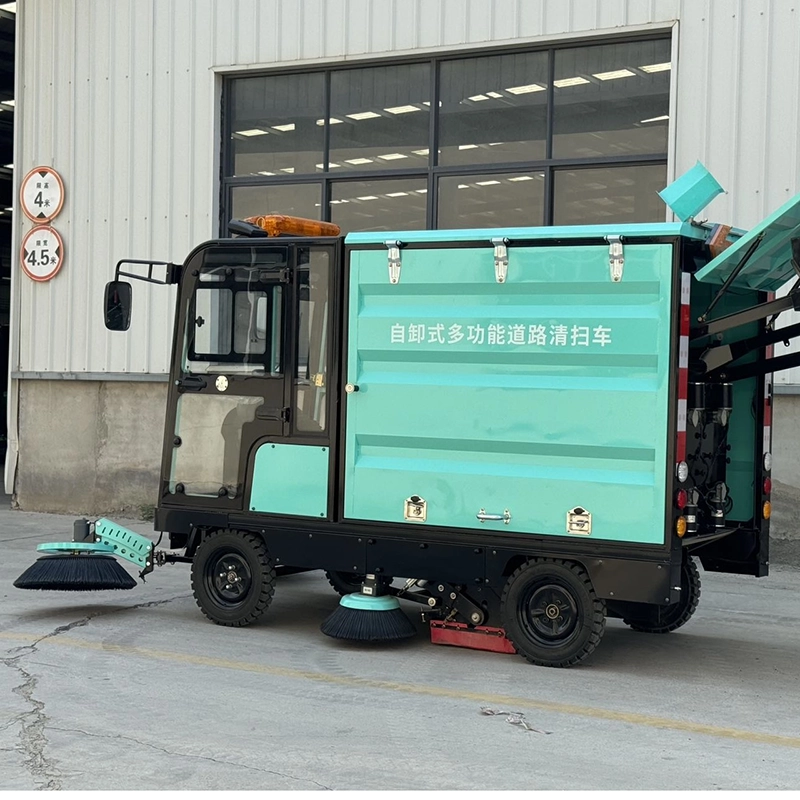

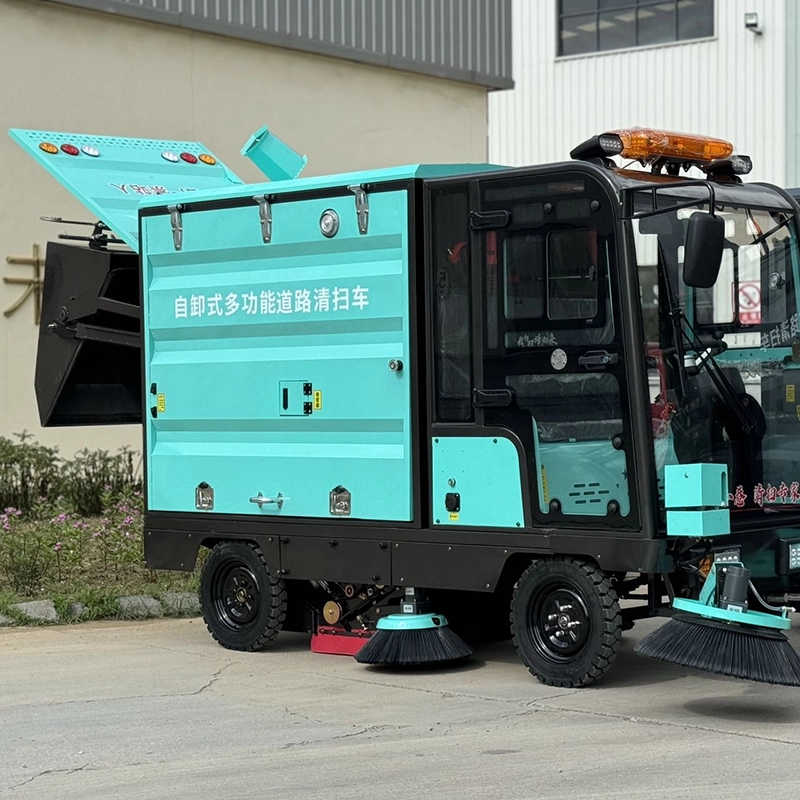

MS-2500ZX four-wheel five-brush fully enclosed sweeper with four fans and self-dumping function is equipped with a four-fan multi-layer filtration dust removal system, featuring an adjustable cleaning width of 1550-2600mm and a maximum working efficiency of 22,500 square meters per hour. It comes with a hydraulic self-dumping device that eliminates manual garbage cleaning. Powered by a robust 2200W drive motor, it is fitted with a 220L dust bin and an 800L large-capacity water tank, supporting a continuous working duration of 6 to 8 hours. Built with a four-wheel heavy-duty body, it integrates garbage collection, transportation and cleaning for construction sites and municipal roads to greatly save labor.

ParameterSpecification
ModelMS-2500ZX Four-wheel Five-brush Fully Enclosed Sweeper with 4 Fans & Self-dumping System
Cleaning Width1550-2600mm
Main Brush Length800mm
Side Brush DiameterFront: 700mm × 2; Rear: 500mm × 2
Working Efficiency15000-22500 ㎡/h
Dust Bin Capacity220L
Drive Motor2200W
Working Power (1 main brush + 4 side brushes + 4 fans + 4 dust shakers)1000W + 120W×4 + 350W×4 + 120W×4
Hydraulic Oil Pump Power2200W
High-pressure Water Pump Power1100W
Water Tank Capacity800L
Power Supply48V 220Ah (8 batteries)
Continuous Working Time6-8h
Travel Speed0-12km/h
Operating Speed0-9km/h
Spraying Range of Front High-pressure Washing8-10m
Spraying Range of High-pressure Counter Flushing13-16m
